Doggy Tourer Webber B Coupling System

Clutch B, BO

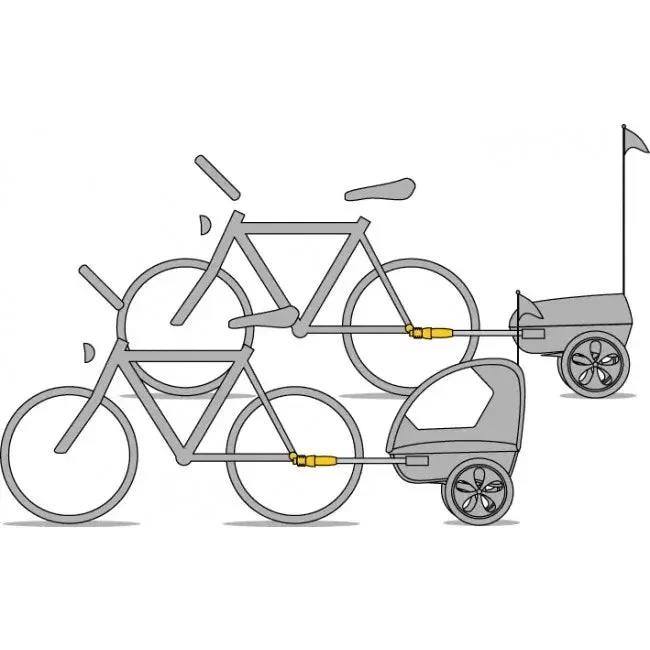

Bicycles with a trailer need a solid stand, especially when loading or unloading. The coupling B was developed by Weber for this purpose.
The B-coupling is the most commonly used rear-mounted clutch with integrated stand for bicycles with a wheel size of 26" and 28".

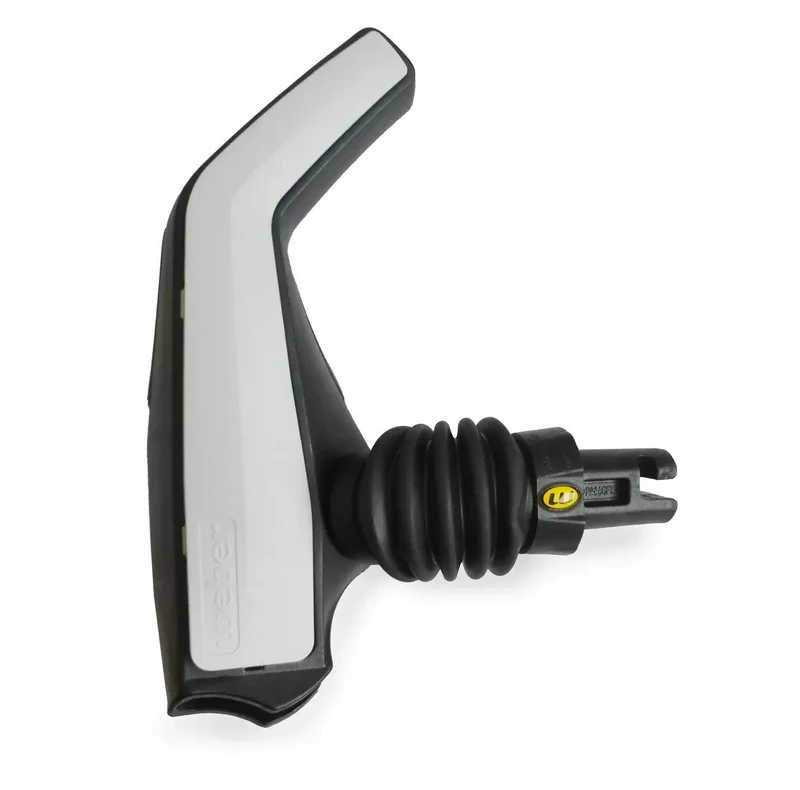

The BO coupling is the special version of the B coupling without the integrated side stand.

Featuring secure tensioning tape mounting, this product is perfect for everyday life and touring. The sturdy, adjustable stand has an extra-wide base for stable support on any type of ground. The clamping straps can accommodate pipes with diameters ranging from 12 to max 25 mm.

Features of the B-coupling

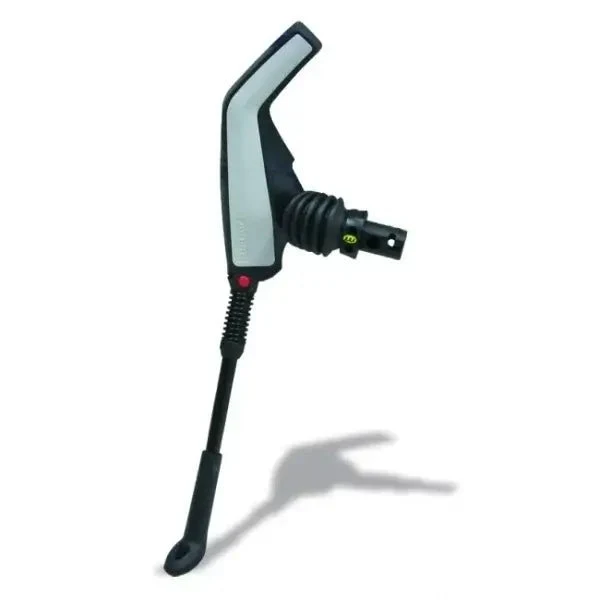

• Bicycle coupling with integrated stand
• Weber bayonet closure
• Height adjustable stand base
• Fits wheels with fixed rear mount for both 26' and 28' wheel sizes. Limitations partly for disc brakes and reinforcement struts on the rear
• Gentle tensioning strap attachment on the frame
• Only high quality, non-stainless materials
• Low weight (510 grams)

Mounting on the bike B-coupling

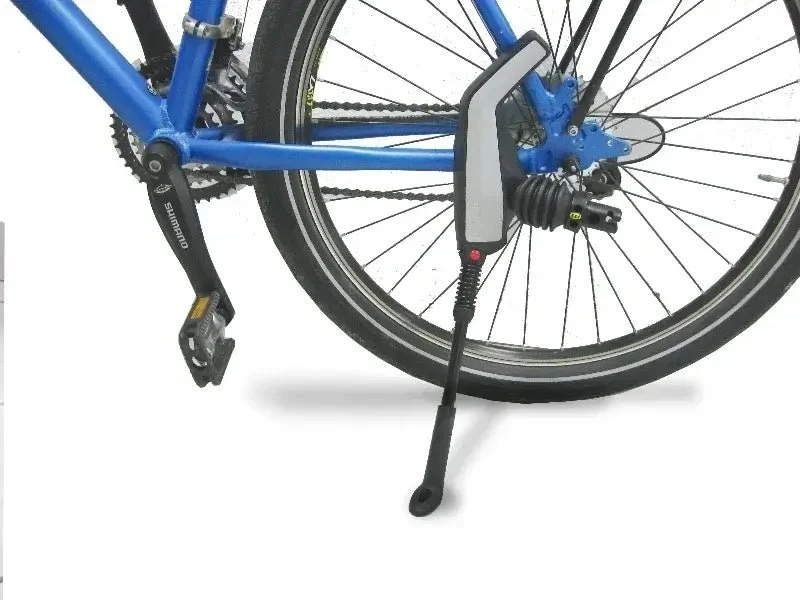

The B coupling is mounted on the rear frame triangle by stainless steel tensioning straps, which are clamped around the rear struts of the frame.

The B coupling cannot be mounted at:

• Pipe diameters of less than 12 and more than 25 mm
• Wheel sizes below 26
• Fully suspended bicycles
• installed frame triangle
• too large frame triangle
• Carbon wheels or with carbon rear triangle

Technical data B-clutch

Suitable for unbridled and braked bicycle trailers for truck and children's transport. Suitable for slow pedal electric cycles up to 25km/h. Not approved for motorized use!

• Zul. Storage weight of the bike: 25 kg
• Zul. Total weight of trailer: up to 80kg
• A switch static support load at the incapacity point: up to 6.5kg
• Weight: approx. 510 grams
• Plastic materials: glass fibre reinforced polyamide
• Metal materials: coated steel, stainless steel

Scope of delivery B coupling

• B-coupling incl. Articulated piece with integrated Hebie stand
• 3 stainless steel tension straps
• 2 rubber nubs
• Plastic prism
• 2 pad discs
• 1 mounting screw for tensioning strap saddle bracelet
• 1 mounting screw for tensioning strap chainstay
• Glue protective film

  Weber B Coupling Instructions
